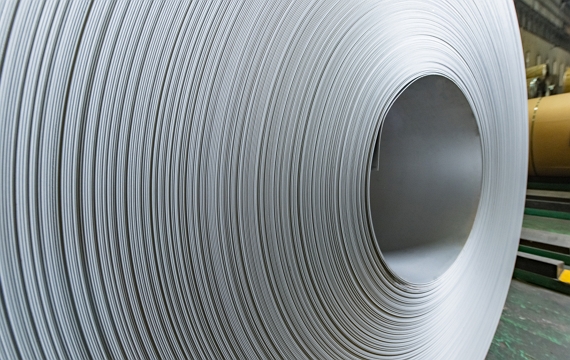

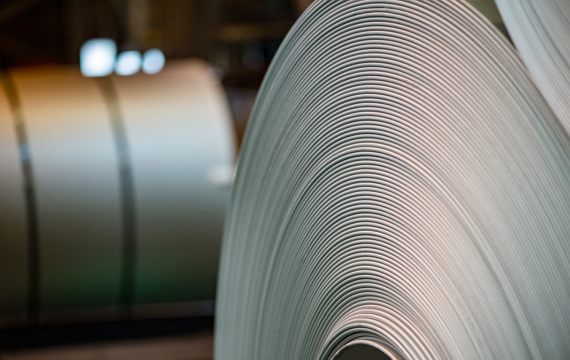

STAINLESS STEEL COLD ROLLED COILS
Elevate your projects with certified, high-performance Stainless Steel Cold Rolled Coils, designed to deliver excellence in every application. Stainless Steel Cold Rolled Coils are precision-engineered products known for their exceptional strength, durability, and sleek finish. Manufactured through a cold rolling process, they offer consistent thickness, superior surface quality, and enhanced mechanical properties. Stainless Steel Cold Rolled Coils can be produced in 2B/2D/BA/No.4/No.8/PVD Color Coated
| GRADE | C | Si | Mn | P | S | Cr | Mo | Ni | Cu |
|---|---|---|---|---|---|---|---|---|---|
| X5CrNi18-10 / 1.4301 / 304 | 0.07 | 1 | 2 | 0.045 | 0.015 | 17.5 – 19.5 | - | 8.0-10.5 | - |
| X2CrNi18-9 / 1.4307 / 304 L | 0.03 | 1 | 2 | 0.045 | 0.015 | 17.5 – 19.5 | - | 8.0-10.5 | - |
| X2CrNiMo17-12-2 / 1.4404 / 316L | 0.03 | 1 | 2 | 0.045 | 0.015 | 16.5 – 18.5 | 2.0-3.0 | 10.0-13.0 | - |
| X6Cr17 / 1.4016 / 430 | 0.055 | 1 | 1 | 0.04 | 0.015 | 16.0 – 18.0 | - | - | - |
| X6Cr13 / 1.4000 / 410S | 0.055 | 1 | 1 | 0.04 | 0.015 | 12.0 – 14.0 | - | - | - |
| X65CR13 / 1.4037 | 0.058 - 0.70 | 1 | 1 | 0.04 | 0.015 | 12.5 – 14.5 | - | - | - |
| 201J3 | 0.2 | 1 | > 8 | >0.03 | 0.03 | >13 | - | >0.8 | >0.3 |
| 201J2 | 0.2 | 1 | > 8 | >0.03 | 0.03 | >13 | - | >0.8 | >0.2 |
| GRADE | MECHANICAL PROPERTIES | |||
|---|---|---|---|---|
| YIELD STRENGTH | TENSILE STRENGTH (N/MM2) | ELONGATION (%) | HARDNESS (HV) | |
| X5CrNi18-10 / 1.4301 / 304 | ≥ 205 | ≥ 515 | > 40% | < 200 |
| X2CrNi18-9 / 1.4307 / 304 L | ≥ 175 | ≥ 485 | > 40% | < 200 |
| X2CrNiMo17-12-2 / 1.4404 / 316L | ≥ 170 | ≥ 485 | > 40% | < 215 |
| X6Cr17 / 1.4016 / 430 | ≥ 205 | ≥ 450 | ≥ 20% | < 185 |
| X6Cr13 / 1.4000 / 410S | ≥ 205 | ≥ 415 | ≥ 20% | < 185 |
| X65CR13 / 1.4037 | ≥ 600 | 850 – 1000 | 10 – 12% | 650 – 750 |
| 201J3 | ≥ 245 | ≥ 520 | > 25% | < 240 |
| 201J2 | ≥ 245 | ≥ 520 | > 25% | < 240 |
| GRADE | MAXIMUM WIDTH (MM) | MIN THICKNESS / MAX THICKNESS (MM) | AVERAGE COIL WEIGHT (MT) |
|---|---|---|---|
| X5CrNi18-10 / 1.4301 / 304 | 1250 | 0.20 / 3.0 | 5 TO 20 |
| X2CrNi18-9 / 1.4307 / 304 L | 1250 | 0.20 / 3.0 | 5 TO 20 |
| X2CrNiMo17-12-2 / 1.4404 / 316L | 1250 | 0.20 / 3.0 | 5 TO 20 |
| X6Cr17 / 1.4016 / 430 | 1250 | 0.20 / 3.0 | 5 TO 20 |
| X6Cr13 / 1.4000 / 410S | 1250 | 0.20 / 3.0 | 5 TO 20 |
| X65CR13 / 1.4037 | 1250 | 0.20 / 3.0 | 5 TO 20 |
| 201J3 | 1250 | 0.20 / 3.0 | 5 TO 20 |
| 201J2 | 1250 | 0.20 / 3.0 | 5 TO 20 |
